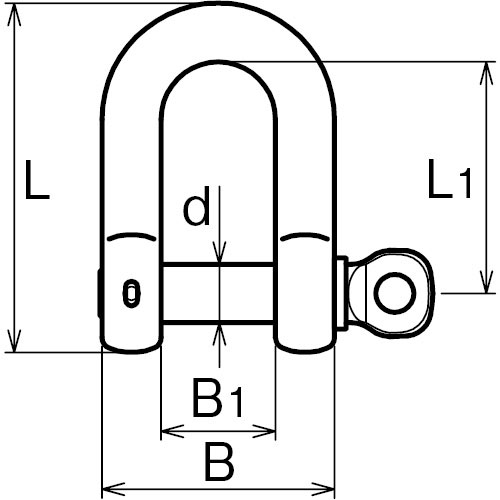

| メーカー品番 | サイズ | d(mm) | L(mm) | L1(mm) | B(mm) | B1(mm) | D(mm) | ネジ径 | 重量(g) | 使用荷重(kg) |
| AK11103 | 7mm | 7 | 42 | 28 | 28 | 14 | 14 | W5/16 | 43 | 170 |
| AK11104 | 8mm | 8 | 48 | 32 | 32 | 16 | 16 | W5/16 | 56 | 220 |
| AK11105 | 9mm | 9 | 54 | 36 | 36 | 18 | 18 | W3/8 | 90 | 270 |
| AK11106 | 10mm | 10 | 60 | 40 | 40 | 20 | 20 | W3/8 | 120 | 320 |
| AK11107 | 12mm | 12 | 72 | 48 | 48 | 24 | 24 | W1/2 | 200 | 400 |
| AK11108 | 13mm | 13 | 78 | 52 | 52 | 26 | 26 | W1/2 | 255 | 450 |
| AK11109 | 16mm | 16 | 96 | 64 | 64 | 32 | 32 | W5/8 | 480 | 900 |
| AK11110 | 19mm | 19 | 114 | 76 | 76 | 38 | 38 | W3/4 | 795 | 1,100 |
